To perform magnetic particle inspections conveniently, HANDY MAGNA is an excellent means. Simply contacting magnetic poles directly with inspection objects and applying magnetic particles with the switch held down detects any defects easily. Various types are provided to satisfy inspection requirements.
Portable Electromagnet Yoke
Models

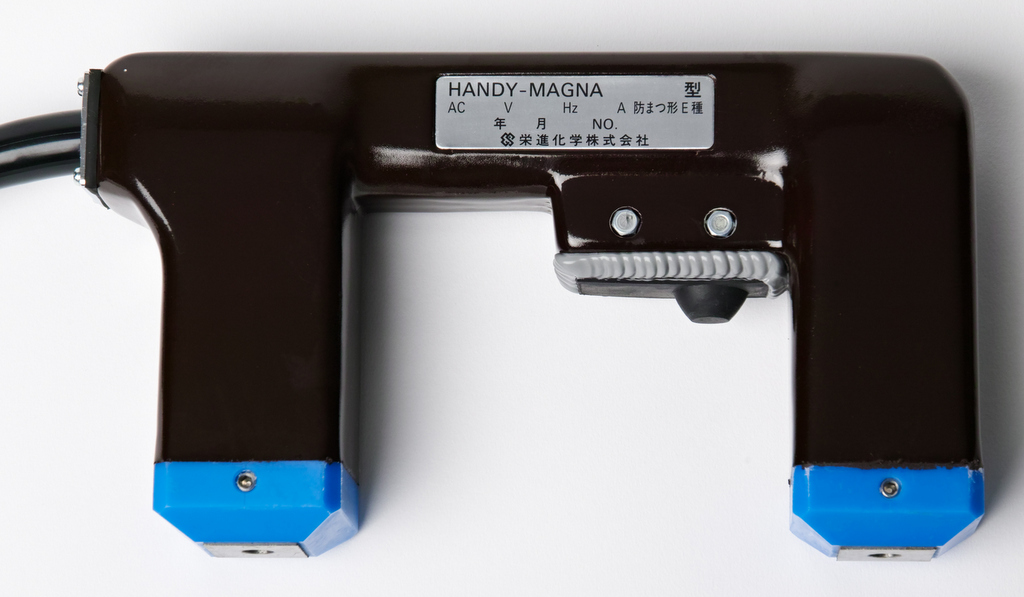

Standard type. Mainly used for welding. With an universal yoke.

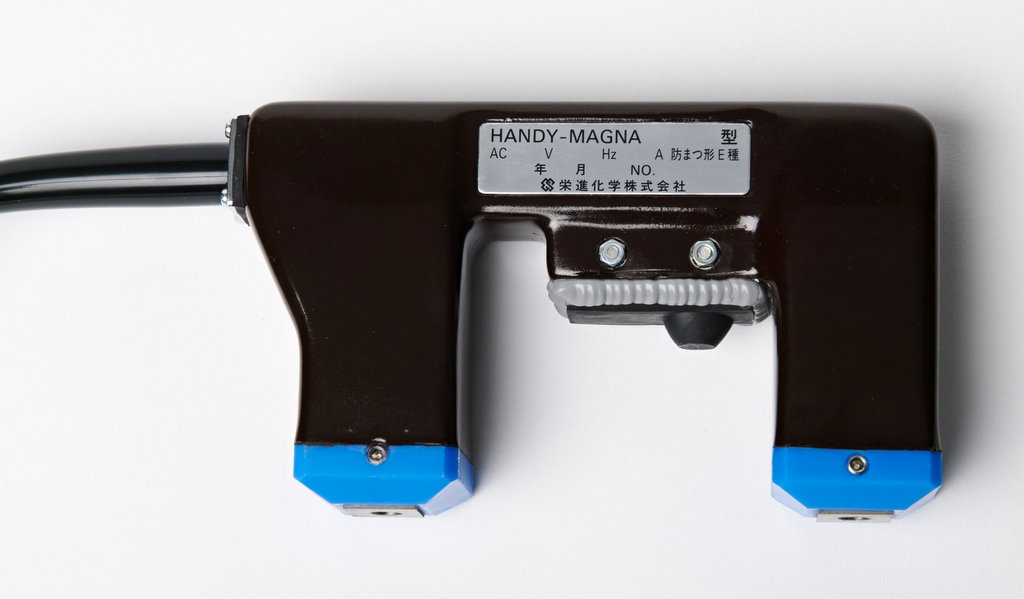

Small and compact type of A-1 type. Useful for long time inspections. Universal yoke is an option.

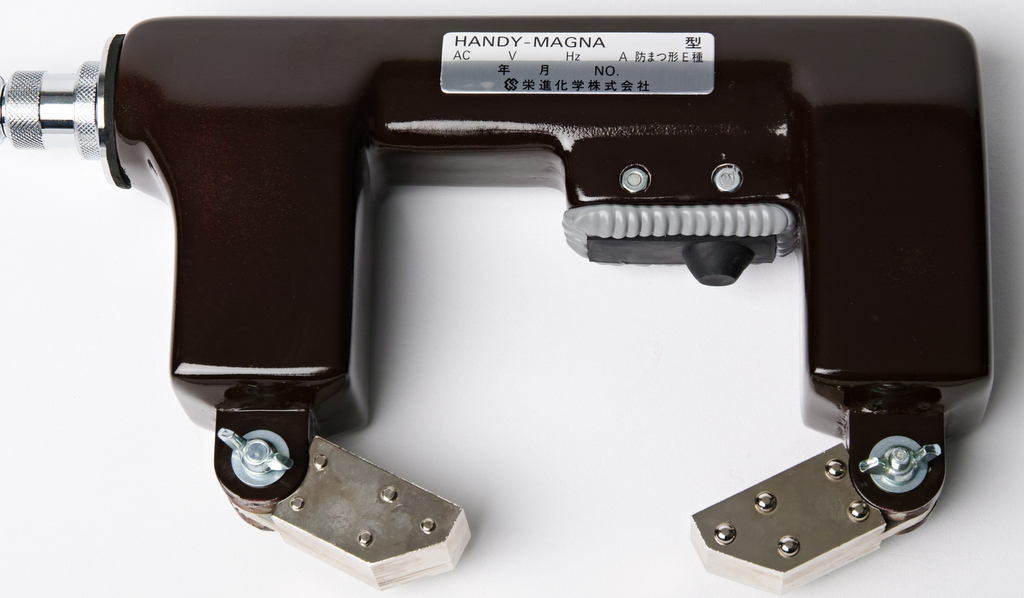

Variable yoke type. Used for multi-purposes and applications.

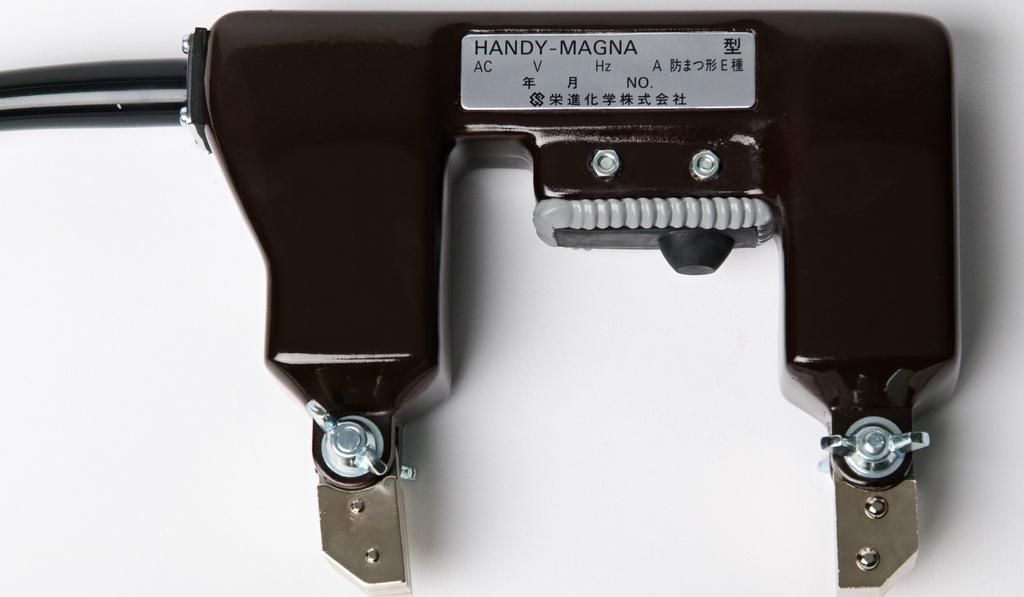

Small and compact type of A-4 type.

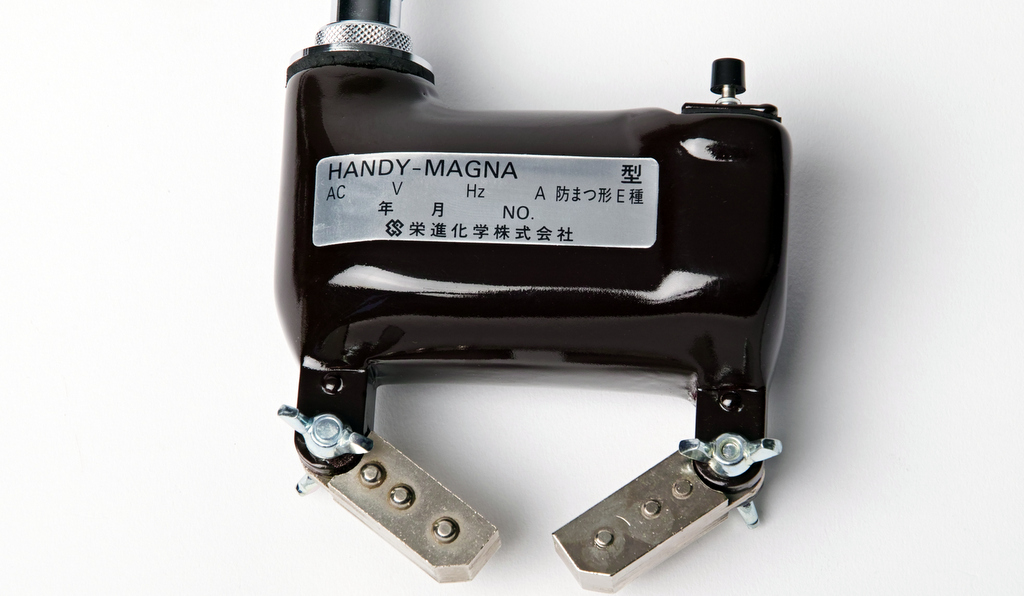

Spot type. Ideal for local inspections and for carrying.

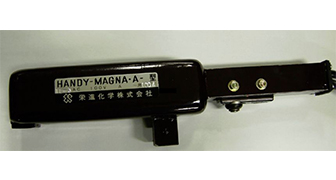

Model TE-3 is the best for a turbine blade inspection.

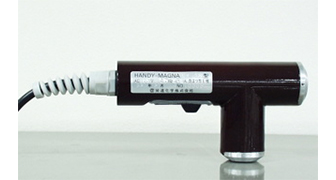

Compact and lightweight for fillet weld

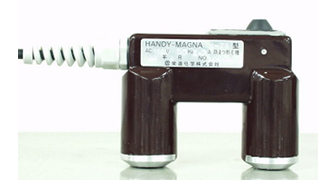

Compact and lightweight
Configuration
- Body (with a micro switch)
- 5m power cable (3-core, two-type rubber cap tire cable)
- Steel carrying case
Features
- The AC continuous method achieves higher ability to detect any surface defects by the skin effect.
- The yoke type, which suppresses a current flowing directly into the tested objects, avoids any possibility of sparking.
- Small, compact, and 100V power supply (AC) suitable for portable use.
- Yokes allow the user to use HANDY MAGNA for any shape tested objects.
- Water-proof switches minimize risks of rare short or shocks to human bodies when wet particles are used.
- For A-1, A-2, and A-6, their bodies have been connected directly to cable connection so that their strength and water-proofing property are improved.
SPECIFICATIONS
| TYPE | A-1 | A-2 | A-4 | A-6 | TE-2 | HM-52L | HM-76 | |
|---|---|---|---|---|---|---|---|---|
| Current | AC100V 50/60Hz(200V and other Voltage can be option.) | AC100V 50Hz | ||||||
| Rated current(A) | 50Hz | 4 | 2.5 | 4 | 3.5 | 1.2 | 1.4 | 1.2 |
| 60Hz | 3 | 2.3 | 3 | 2.3 | 0.7 | – | – | |
| Magnetic flux(mWb) | 50Hz | 0.80 | 0.60 | 0.70 | 0.57 | 0.30 | 0.32 | 0.35 |
| 60Hz | 0.70 | 0.55 | 0.57 | 0.48 | 0.27 | – | – | |
| Magnetic electrode distance (mm) | 140 | 110 | 140 | 110 | 70 | 52 | 76 | |
| Size(WxDxH)mm | 235x50x135 | 193x46x115 | 235x50x183 | 193x50x151 | 115x52x70 | 180x43x96 | 134x43x97 | |
| Magnetic electrode Cross-Section Dimensions(mm) | 25×25 | 20×20 | 25×25 | 20×20 | 15×15 | 15×15 | 15×15 | |
| Weight without cable(kg) | 3.2 | 2.0 | 3.6 | 2.0 | 1.2 | 1.0 | 1.0 | |
Duty cycle
A-1,A-2, and A-6・・・・・・・・・・・・・・・・・70%(5sec ON, 2sec OFF)
TE-2,HM-52L,HM-76・・・・・・・・・・・・・・50%(5sec ON, 2sec OFF)
Lifting power
(excluding TE-2)・・・・・・・・above 10 pounds
Voltage and frequency are fixed per your requirements.

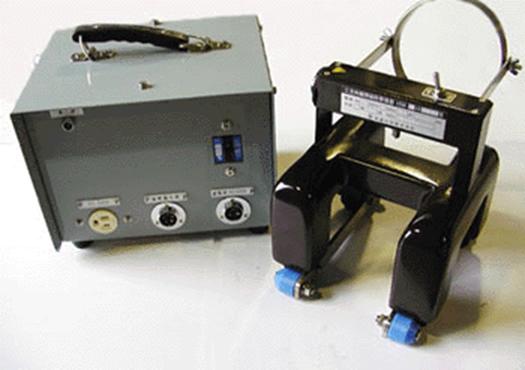

4-pole electromagnet
Developed specially for inspections on the bottoms of tanks and the welds of pressure vessels. The rotating magnetic field enables the defects in all directions to be detected. Since this type can check for any defect while running, testing performance is improved.
SPECIFICATIONS
| TYPE | HM-4AX | HM-5AX |
|---|---|---|
| Magnetizing power(AT) | 2400×2 | 3500×2 |
| Effective inspection wide | 80mm | 100mm |
| Body weight | 4kg | 8kg |
| Duty cycle | 5 sec. ON 5 sec. OFF | 5 sec. OFF 5 sec. ON 5 sec. OFF |
