UV Lamps for Non-Destructive Testing

Download Catalog

Hand-held type

Model S-60LC2

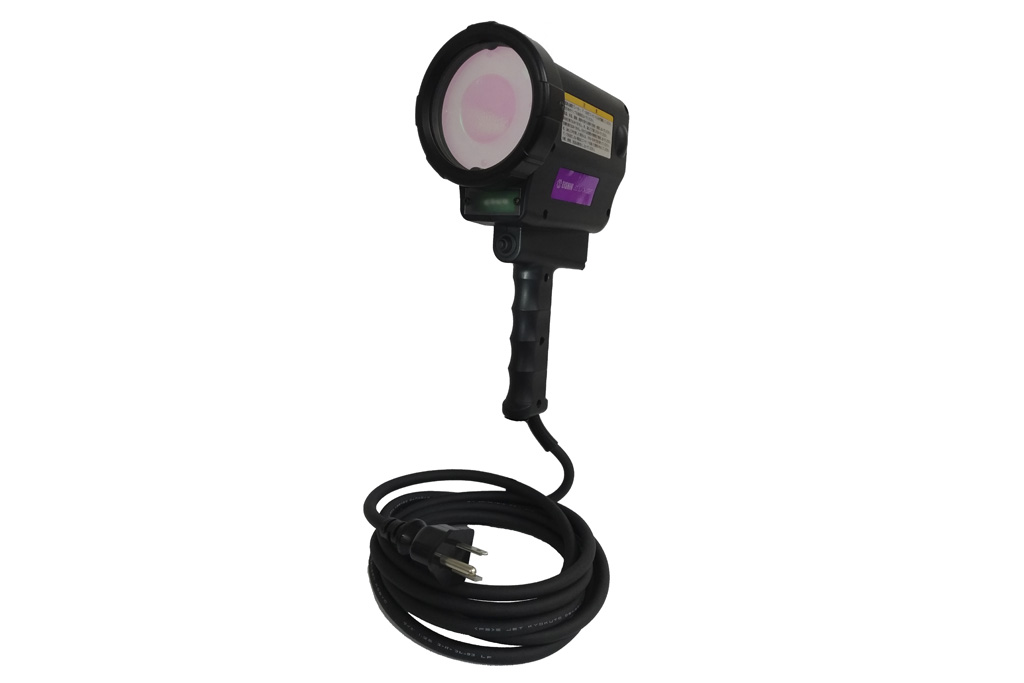

S 60LC1
S-60LC2
S 60LC case
S-60LC2 Strage Case
Specifications
Dimensions
Weight		Light fixture
φ94×150×245mm
Approx.600g (excluding cable)
Dimensions
Weight		Storage case
W330×D280×H120mm
Approx.2400g (Including main unit)
Light SourceUltraviolet Light： High Power UV-LED
Visible Light： White LED
UV IlluminanceCenter Approximately 3000μW/cm2
(Irradiation Distance 381mm)
Peak Wavelength365±5nm
Power cablePrimary 2.5m, Secondary 3m
Effective Irradiation RangeApproximately φ160mm
(Distance 381mm・Range of 1000μW/cm2 or more）
Download Catalog

Model S-65LC2/LCE2

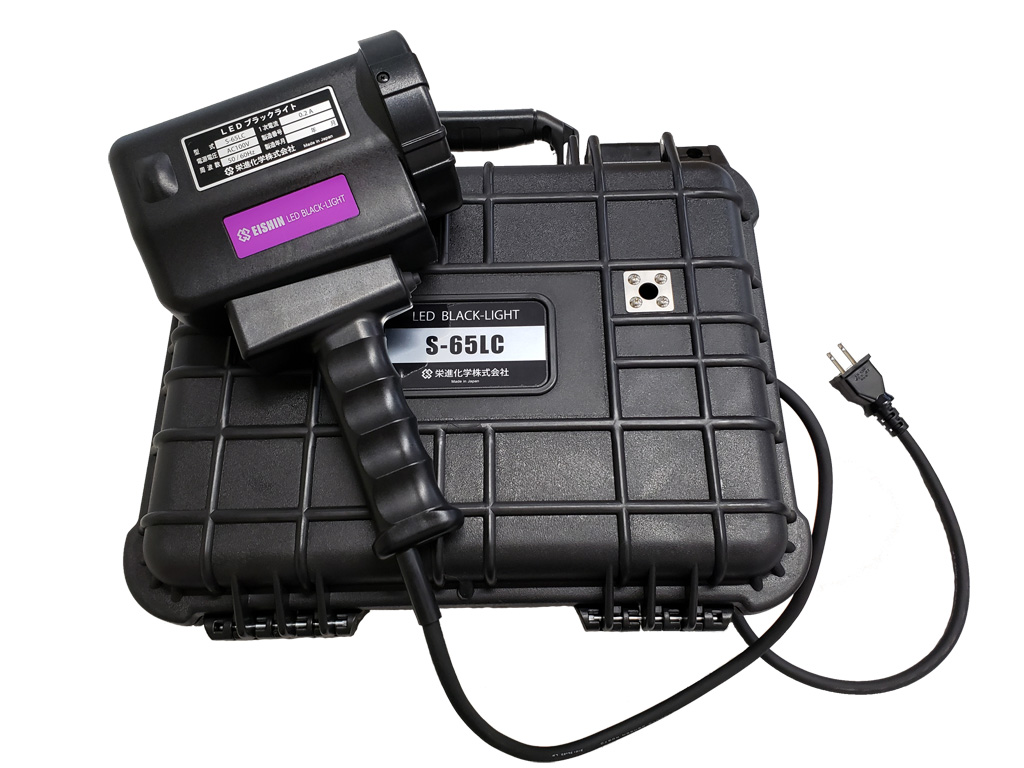

S 65LC
S-65LC2

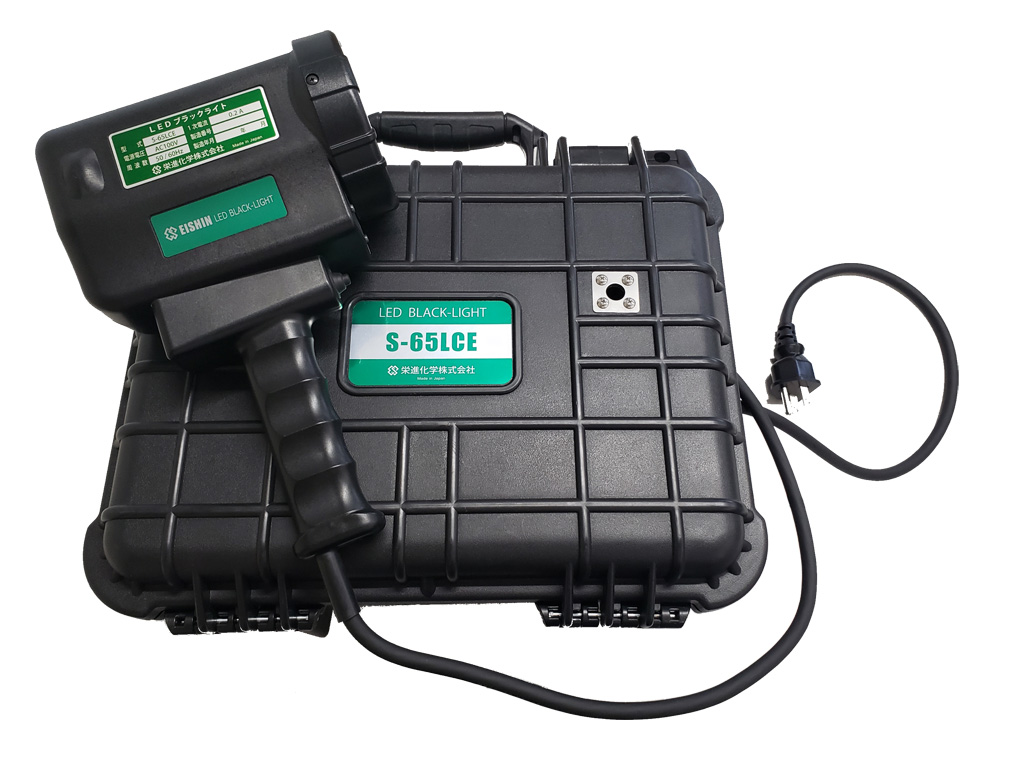

S 65LCE
S-65LCE2
Specifications
Dimensions WxDxH mm340x295x152(Power Supply)
Weight3 kg (Power Supply)
Lamp head dimensions WxDxH mmΦ94×150×245
Lamp head weights0.5kg
UV intensityLC:4,000μW/cm2 at 381mm
LCE:3,500μW/cm2 at 381mm
Power source voltage100V±10%
Power source current0.3A
Power cablePrimary 2.5m, Secondary 3m
Filter
S-65LC2: V cut
S-65LCE2:W cut
Download Catalog

V cut filter

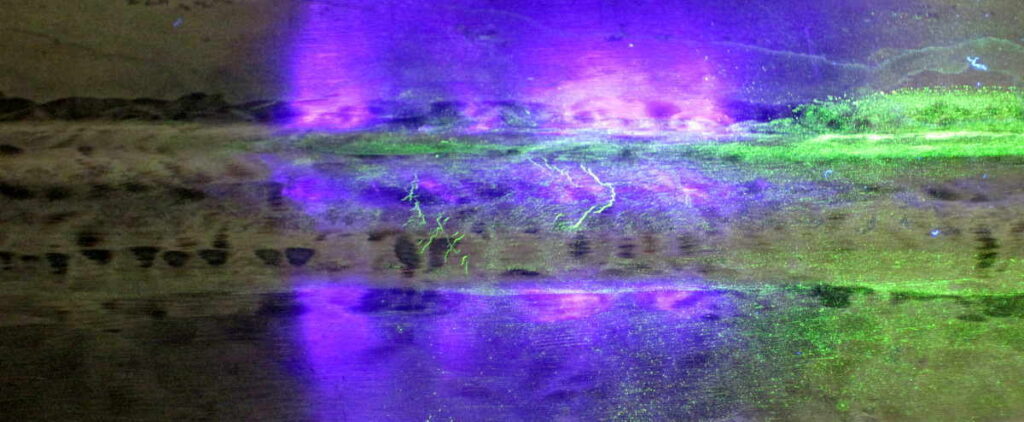

Halationcut off
Without filter

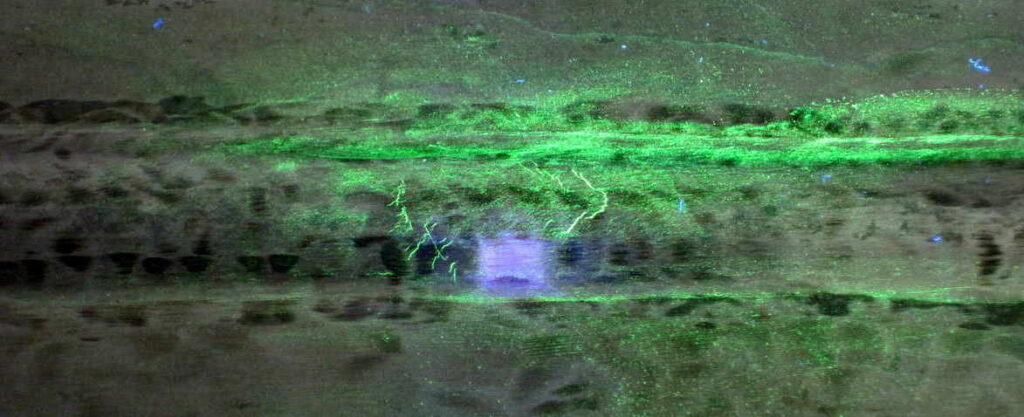

Halationcut on
With filter

Stationary  type

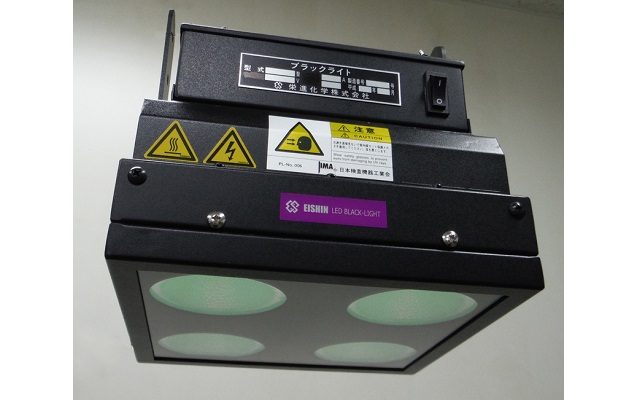

Model L-500LC

 UV-LED lamp

L 500LC
L-500LC
Specifications
Lamp power40W
Dimensions220W×160H×220D mm
Weights6kg
UV intensity4,200μW/cm2 at 600mm
Power source voltage100V 　50Hz / 60Hz
Power source current6.0A
Power cable3m

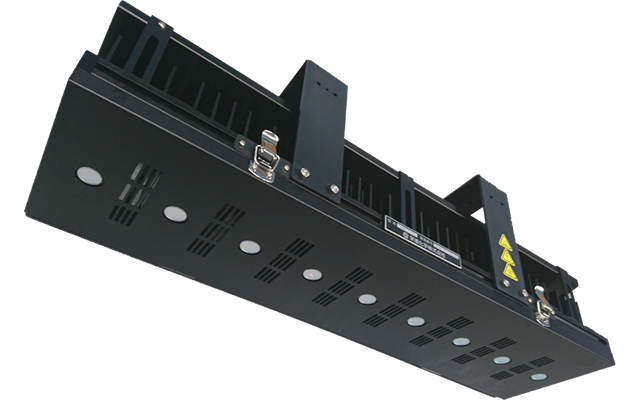

Model LV-9

LV 9 r2 c2
LV-9
Specifications
Power consumption170VA
FanFanless
DimensionsLV-9    ：    W 630  ×  D171  ×  H188
LV-18  ：    W1,260  ×  D171  ×  H188
WeightsLV-9    ： 8.2kg
LV-18  ：14.3kg
UV intensityLV-9,18,24：6,500μW/cm2 at 600mm
LV-6：2,300μW/cm2at 600mm
Power source voltage100～240V 　50Hz / 60Hz
Power source current1.7A
Power cablePrimary 3m, Secondary 5m

Ilumination distribution image

LV image2
Download Catalog

Model ZB-365J

Flashlight type

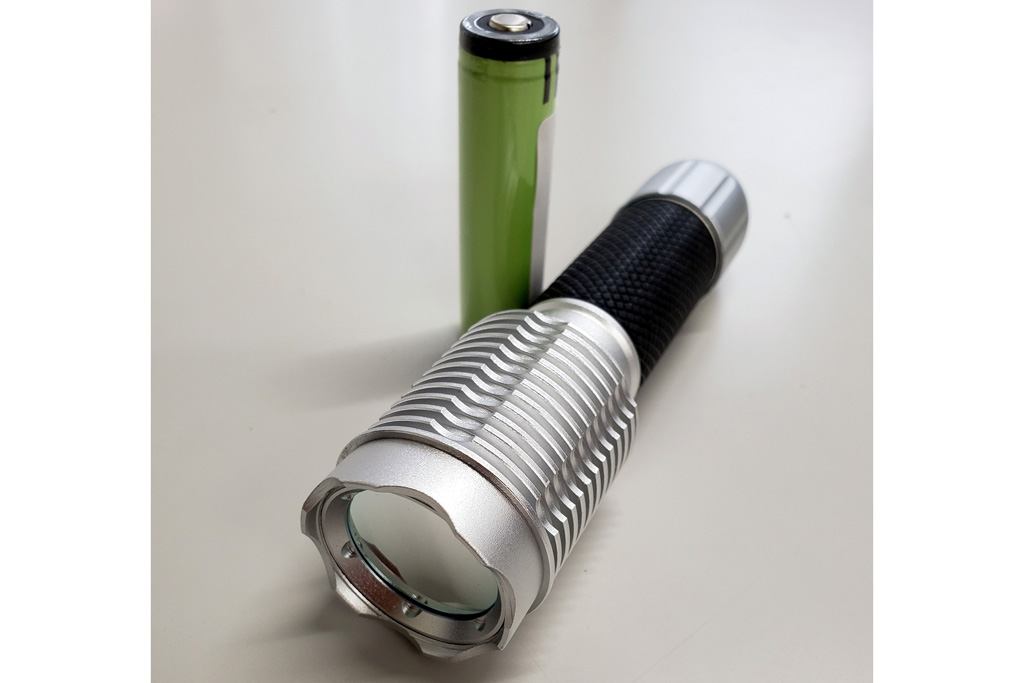

ZB 365J Silver
Model ZB-365J
Specifications
DimensionsΦ38(Head) Φ25(Grip)×140 mm
Weight180g
UV intensity
(WD=Working Distance) 		19,990μW/cm2over　WD=381mm
Visible light componentLess than 10Lx at WD=30-381mm
Power sourceLi-ion Battery (18650) ×1
FilterBand pass filter
Download Catalog

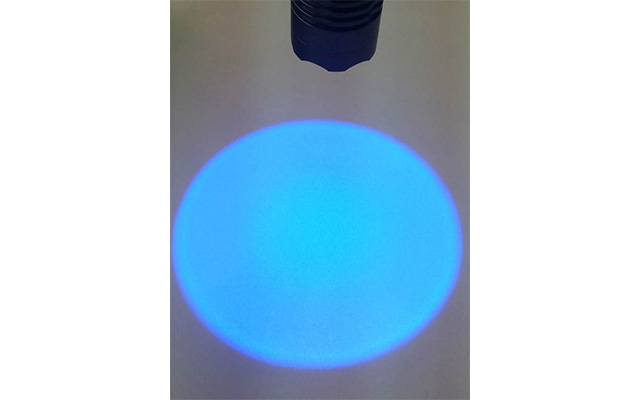

Blacklight
Blacklight
Blacklight

band pass filter

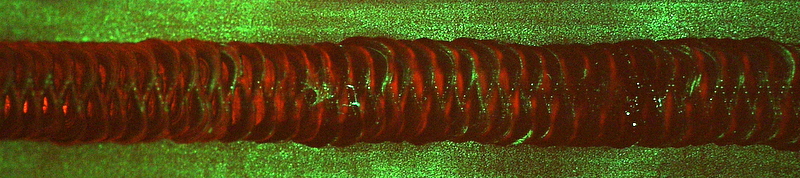

OLYMPUS DIGITAL CAMERA
Without filter

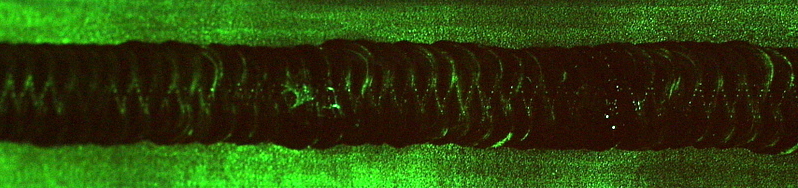

OLYMPUS DIGITAL CAMERA
With filter
