Dye Penetrant Testing"RED MARK"
Visible dye penetrant inspection materials indicating any defects open to the surfaces of all kinds of materials in "RED".
Accurate and reliable: DPT is a highly accurate and reliable method for detecting surface-breaking defects in a wide range of materials.Non-destructive: DPT is a non-destructive testing method, which means that it won't alter the material being tested and preserves its integrity for further use or inspection.Cost-effective:
DPT is Versatile Easy to use: DPT is easy to perform and does not require any specialized equipment or training, making it accessible to a wide range of customers.
Complementary to other testing methods: DPT can be used in conjunction with other non-destructive testing methods to provide a more comprehensive assessment of the material.
Improves quality control: By detecting surface-breaking defects early on, DPT helps improve quality control and prevent potential failure of the material.
Visible dye penetrant inspection allows the user to detect defects open to the surface and through cracks easily using penetrant, developer, and remover. On all kinds of inspection objects, the penetrant, developer, and remover draw clear and accurate patterns of the defects, if any, in "RED" against the "WHITE" background. Various types of RED MARK are provided for different applications. All solvent removal materials except non-flammable type and high-temperature type are not applied to Pollutant Release and Transfer Register. All materials of water-washable penetrant "plus series" are not applied to Pollutant Release and Transfer Register.
SOLVENT REMOVABLE TYPE
You can see it by scrolling horizontally.
| REGULAR TYPE | Penetrant | R-1A(NT) | Technical data sheet |
|---|---|---|---|
| Developer | R-1S(NT) | Technical data sheet | |
| Remover | R-1M(NT) | Technical data sheet | |
| AMS/MIL APPROVAL TYPE In accordance with AMS 2644,MIL-I-25135 |
Penetrant | R-1A(NT)/1 | Technical data sheet |
| Developer | R-1S(NT)/1 | Technical data sheet | |
| Remover | R-1M(NT)/1 | Technical data sheet | |
| LOW HALOGEN/SULFUR TYPE Compatible with stainless steel, Ni, Ti, alloys |
Penetrant | R-1A(NT) Special | Technical data sheet |
| Developer | R-1S(NT) Special | Technical data sheet | |
| Remover | R-1M(NT) Special | Technical data sheet | |
| NON-FLAMMABLE TYPE (HFC is used ) |
Penetrant | RF-1A | Technical data sheet |
| Developer | RF-1S | Technical data sheet | |
| Remover | RF-1M | Technical data sheet | |
| HIGH TEMPERATURE TYPE Used for hot surfaces(90-200) |
Penetrant | R-1AH(NT) | Technical data sheet |
| Developer | R-1SH(NT) | Technical data sheet | |
| Remover | R-1MH(NT) | Technical data sheet |
WATER WASHABLE PENETRANT
You can see it by scrolling horizontally.
| REGULAR TYPE | R-3B(NT) PLUS | Used for casting, key groove, and screw parts. | Technical data sheet |
|---|---|---|---|
| LOW HALOGEN/SULFUR TYPE | R-3B(NT) Special PLUS | Used for welding bead on stainless steel and Ti-alloys. | Technical data sheet |
| WATER BASE TYPE | R-3B(NT) W-1 PLUS | Used for raw materials like slab. Non-flammable. | Technical data sheet |
SPECIAL DEVELOPER
You can see it by scrolling horizontally.
| EASY REMOVABLE TYPE | R-1SB | Easy removal of developer coating after inspection. | Technical data sheet |
|---|---|---|---|
| FAST DRYING TYPE | R-1SD(NT) R-1SD(NT) Special |
Used at high humidity, low temperature. Low halogen/sulfur. |
Technical data sheet Technical data sheet |
| PASTE TYPE | DP-1S | Applied with sprayer. High viscosity, non-flammable. | Technical data sheet |
SPECIAL REMOVER
You can see it by scrolling horizontally.
| SLOW DRYING TYPE | R-1MS(NT) 2 R-1MS(NT) Special 2 |
Volatilization speed is slow. Low halogen/sulfur. |
Technical data sheet Technical data sheet |
|---|---|---|---|
| WATER AEROSOL TYPE | R-3M(NT) R-3M(NT) Special |
Pure water is filled into aerosol. Low halogen/sulfur. |
Technical data sheet Technical data sheet |

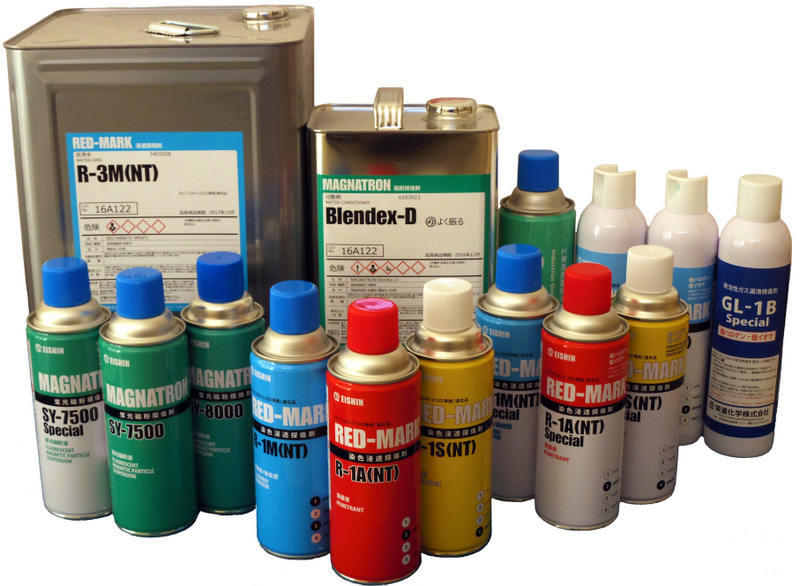

Container
Aerosol type : a set of six cans (one penetrant, two developers, and three removers)
Can size : 3.8L, 18 L
Container
Aerosol type : four, six or eight set packages in a Cardboard box
3.8 L Can type : two or four Cans in a Cardboard box
18 L Can type :one Cans in a Cardboard box
