Test Pieces & NDT related items

Test panels for penetrant inspections

Test panels are used for penetrant-effectiveness testing and result validation, if appropriate. The our test panels made under full use of "Know-How" cultivated in abundant experiences are widely used over the world.

Liquid Penetrant Performance Checks
Test pieces are essential for assessing the performance of liquid penetrant processes and determining that a suitable level of sensitivity is being achieved. We supply a range of commonly used test pieces that can be used to measure and or compare different consumables. Differing types and brands of penetrant will produce different result but the same product can sometimes work differently if contaminated with water or greases etc. This makes such tests essential to reliable and NDT.


 Item  Photo

Ni Cr Test Panel  Tyep 1Type (JIS Z 2343-3/ISO 3452-3)


TypeI NiCr test panels (also known as ISO 3452-3 type 1 reference blocks) are made of brass plated with a 20-micron nickel-chromium alloy. These panels are stressed to induce linear cracks and cut into two paired panels for comparative testing of new and in-service materials. The panels are available with crack depths of 10, 20, 30 and 50 µm. For the red dye penetrant test, panels of 30 µm and 50 µm are used, while for the fluorescent penetrant test the panels vary between 10 µm and 20 µm for ultra-high sensitivity, 10, 20 and 30 µm for high sensitivity and 20, 30 and 50 µm for normal sensitivity. This setting ensures optimum performance evaluation of the permeate.

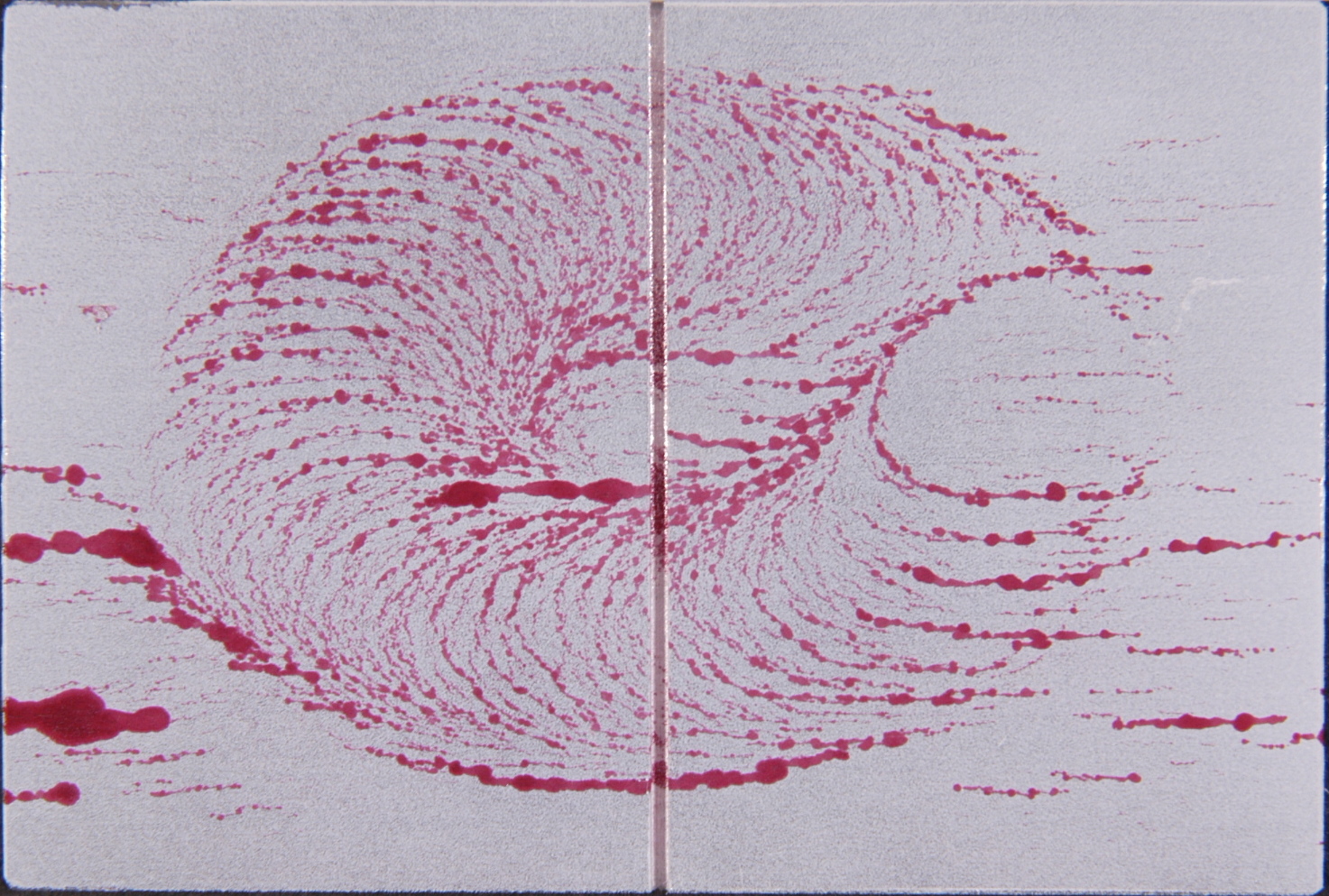

Type 3 reference test block
(JIS Z 2343-3/ISO 3452-3 AMS 2644  )

Cracked Aluminum Test Blocks compare sensitivity of different penetrants or sensitivity of new and used penetrants. This is done by processing one half of the block with used penetrant and the other half with fresh penetrant. It is manufactured to meet the ASME Boiler Pressure Code, Section V & III, and MIL-I-23135-C. The cracked aluminum block is made from 2024 aluminum and is 3” x 2” x 3/8” thick. A 1/8" wide groove separates the blocks two sides to facilitate side-by-side penetrant comparison.

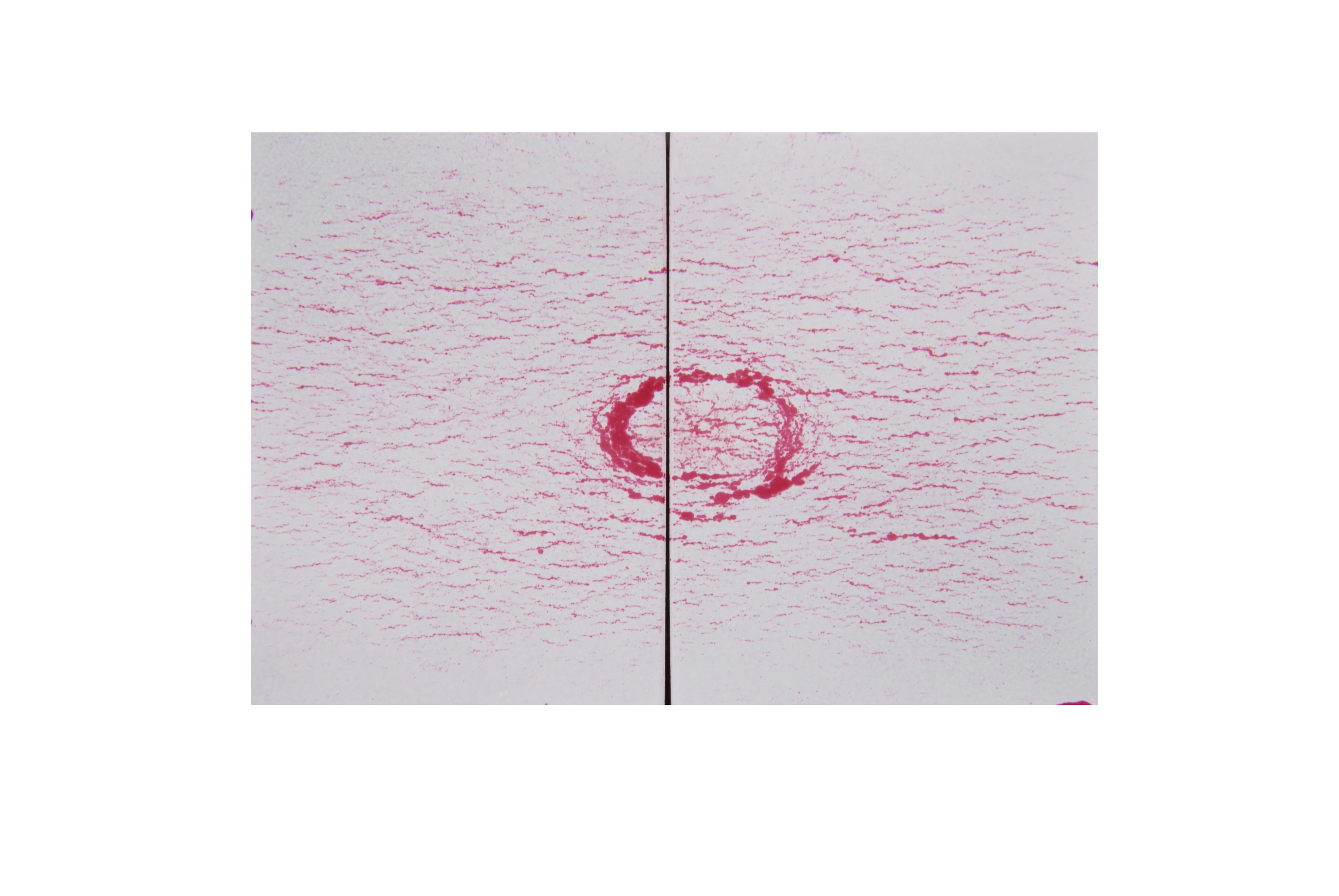

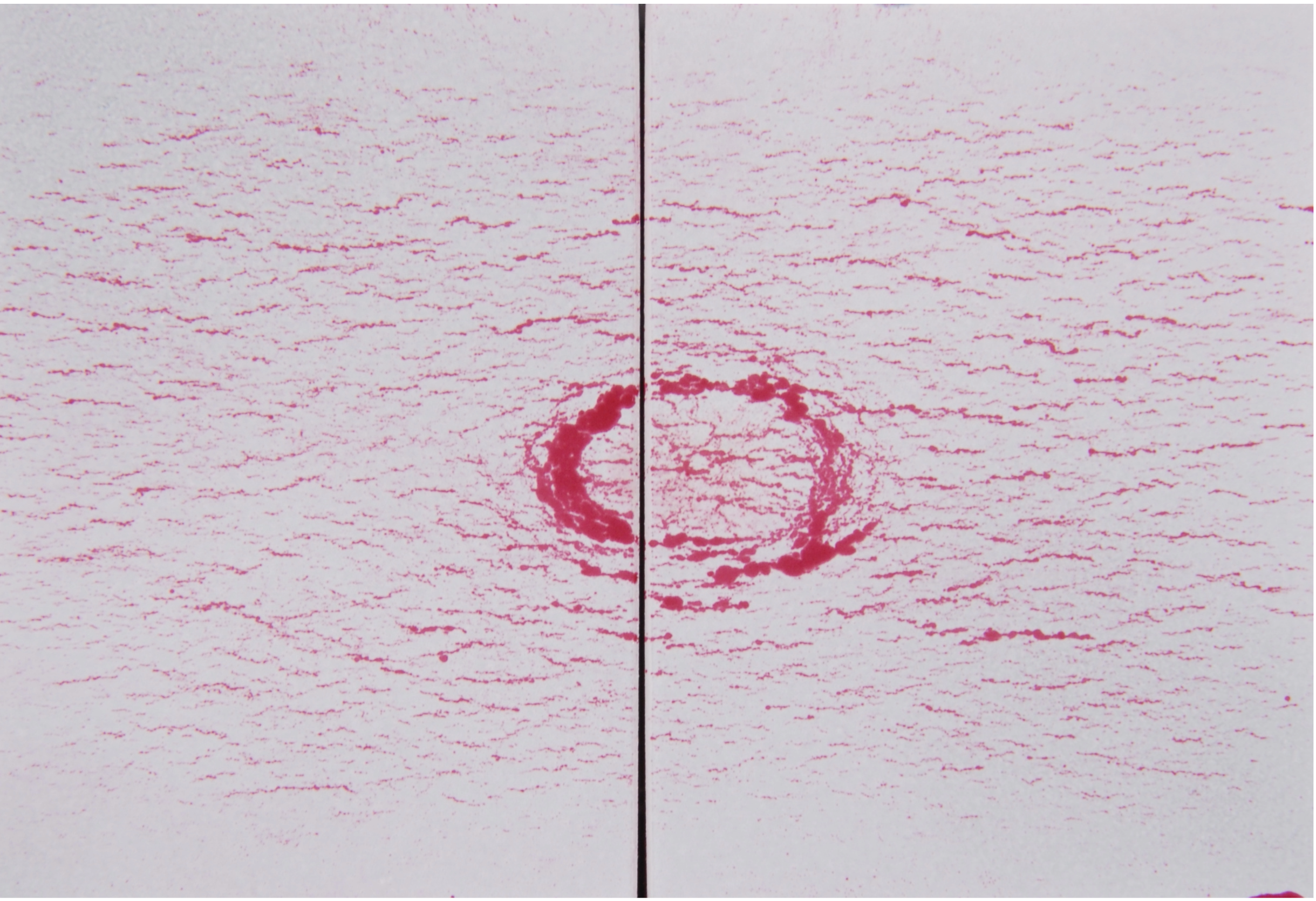

ASME  aluminium test block    https://www.eishinkagaku.co.jp/dcms_media/image/ASMETP.jpg Twin Type ,10 mm in the thickness

Micro Resolution Chart for X-Ray

crafted by the Japan Inspection Instruments Manufacturers' Association(JIMA), offer state-of-the-art calibration for CT and X-ray systems. Enhancing imaging precision across various resolutions, they're essential for quality scans and inspections.

Style Line/Space Size Photo Catalog

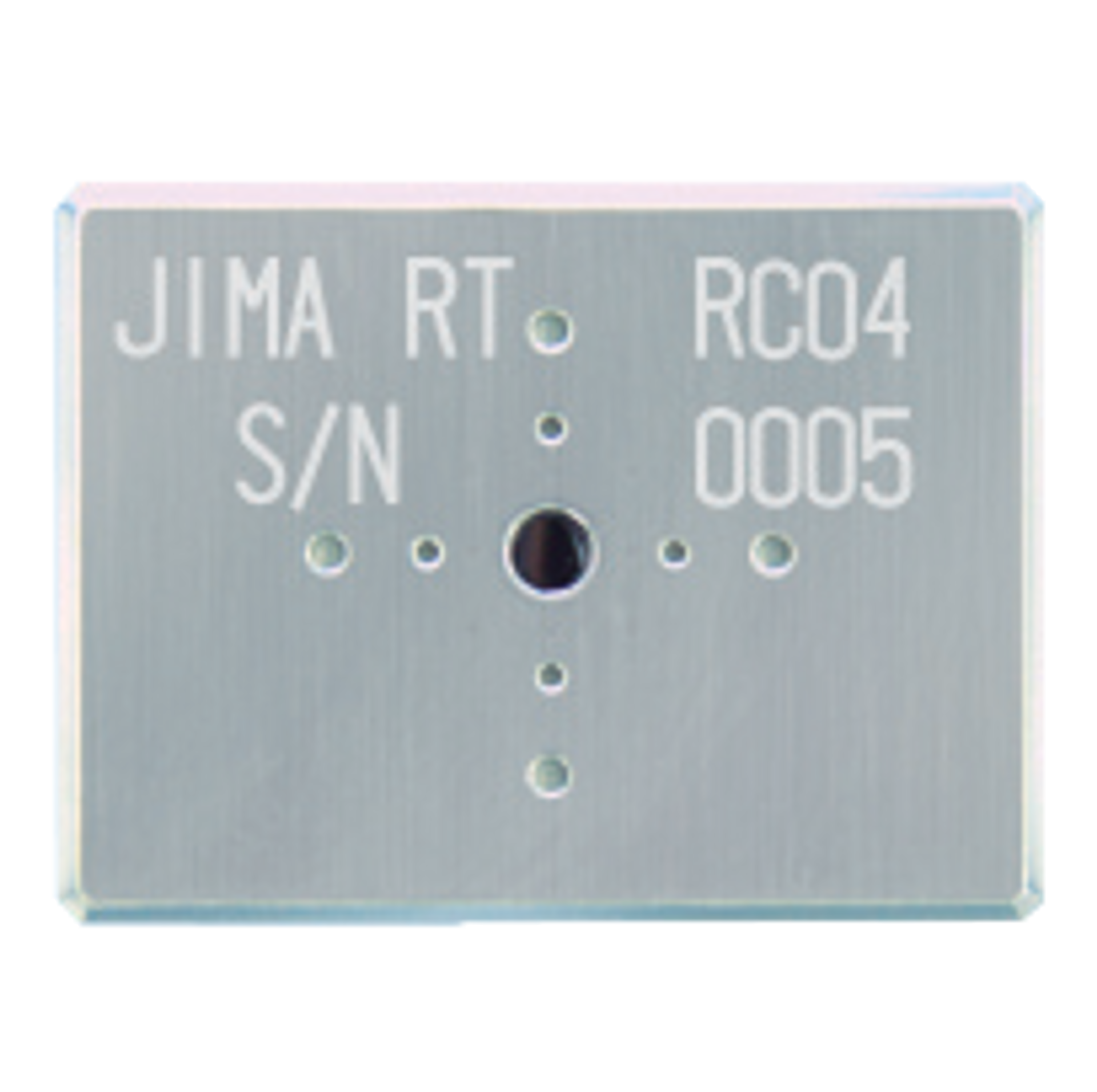

RT RC-04
is product of the latest advances in semiconductor lithography, designed to enhance the calibration and resolution monitoring of X-ray inspection systems. This chart is equipped with 23 T-shaped lines, featuring 7 spaces each, and supports a wide range of sizes from 0.1µm up to 10µm. It's an essential tool for maintaining the precision and quality of both microfocus and nanofocus X-ray systems. The chart is accompanied by a storage case at no extra charge, ensuring its longevity and optimal condition when not in use
0.1µm up to 10µm:
0.1, 0.15, 0.2, 0.25, 0.3, 0.35, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 10, 1.5, 2.0, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0, 9.0, 10.0 µm widths
 RT RC-04

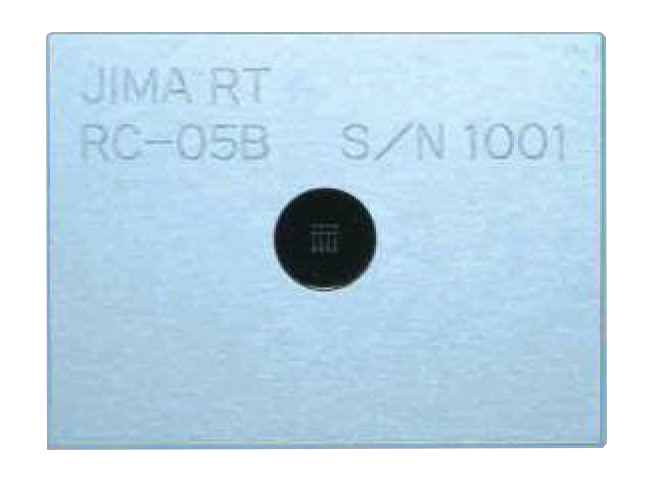

RT RC-05B
, a state-of-the-art micro resolution chart designed to set a new standard in X-ray system calibration and monitoring. Using advanced semiconductor lithography techniques, this chart supports resolutions between 3 and 50 microns (3 µm and 50 µm), making it ideal for both microfocus and nanofocus X-ray inspection systems. It is instrumental in achieving high-quality inspection results, with a focus on systems that require focal spot sizes between 6 and 100 microns (6 µm and 100 µm). Like its counterparts, it comes with a complimentary storage case for its protection, which should be removed when the chart is in use.
T Shape Layout: 3, 4, 5, 6, 7, 8, 9, 10 µm
I Shape Only: 15, 20, 25, 30, 35, 40, 45, 50 µm
RT RC-05B

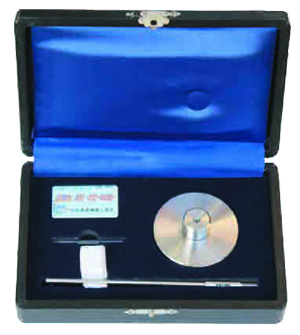

RT CT-01B marks a leap in computed tomography (CT) system calibration technology. Crafted using cutting-edge semiconductor processing technologies, it offers unparalleled resolution verification capabilities for microfocus CT systems. This chart features a unique T-shape pattern with lines and spaces in five different sizes ranging from 3 to 7 microns, catering to precise calibration, alignment, and maintenance needs. Gold (Au) is employed as an absorption material to enhance its utility. The product is delivered with a storage case to ensure its protection, which should be removed during use.
3, 4, 5, 6, 7 µm
 RT CT-01B

Test panels for Ultrasonic Testing

JIS Z 2345-1 ~ JIS Z 2345-4

STB-N1,STB-A1,STB-G
Adjusting the time axis and measuring range required to measure the position of the reflective source: Using a test specimen, adjust the time axis of the ultrasonic testing device to accurately measure the position of the reflective source. The measurement range is also adjusted appropriately to optimize the range of the flaw.

Adjustments required to measure the echo height from the reflective source and to adjust the test sensitivity: Using the test specimen, adjust the settings of the ultrasonic testing equipment to accurately measure the echo height from the reflective source. Also, adjust the flaw sensitivity to more reliably detect minute defects and anomalies.

Inspect the characteristics and performance of the ultrasonic testing equipment and measure performance characteristics to inspect the equipment: Using a test specimen, inspect the characteristics and performance of the ultrasonic testing equipment to verify that it is functioning properly. Evaluate equipment performance by measuring performance characteristics and make adjustments or repairs as needed.UT Test Block

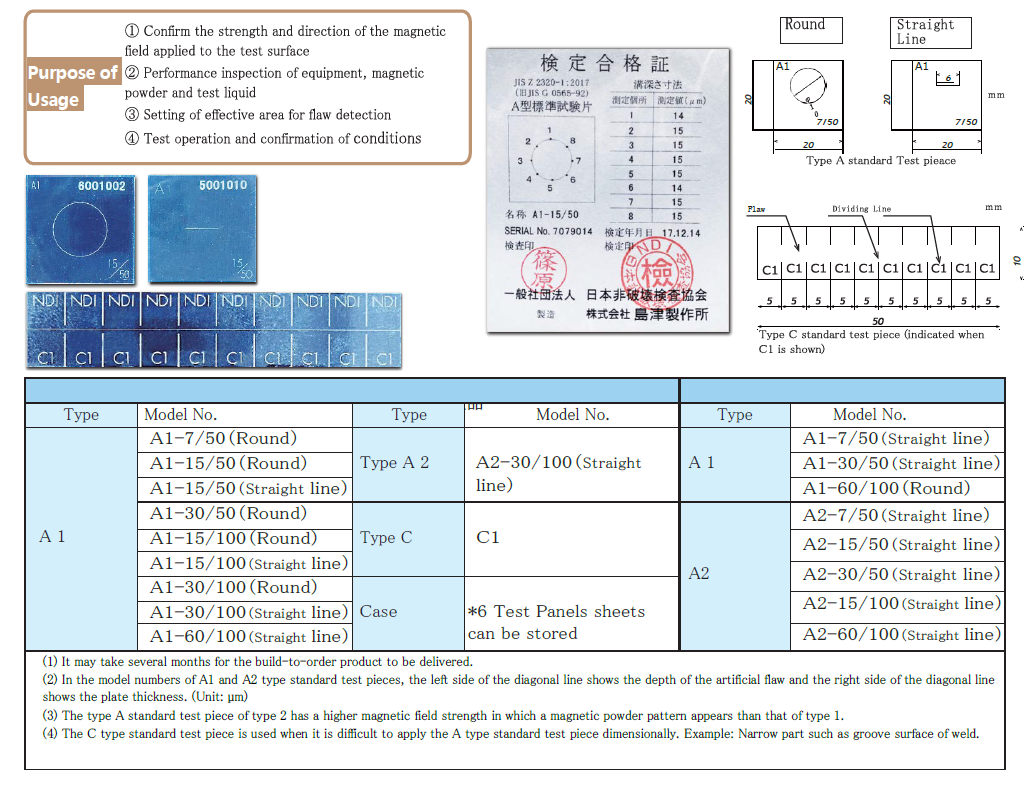

Test panels for Magnetic particle Testing

JIS Z 2320-1



The standard test specimen is a tool to evaluate the performance of magnetic particle inspection and to improve the accuracy of the inspection results. Magnetic powder flaw detection is a technique to detect the presence of minute defects or cracks on the surface of metal parts or structures.

By using a test piece, the sensitivity and accuracy of magnetic particle inspection can be objectively evaluated. It is also possible to examine factors that affect the performance of magnetic powder testing. For example, the performance of the equipment, magnetic powder, and inspection fluid used, the strength and direction of the magnetic field, and the suitability of the test operation are evaluated.

Type A standard test specimens are used to reliably indicate the orientation of a particular defect. If the defect is in a particular direction, the pattern of the magnetic powder will be in a particular pattern. The clear indication of this pattern helps to maintain the accuracy of the flaw detection. In the test specimen, the magnetization method, the value of the magnetizing current, the application method of the magnetic powder, and the concentration of the magnetic powder in the test solution are adjusted.

The test specimen is made of a thin sheet of pure iron, with grooves on one side. The test specimens are classified into several types according to the groove depth, plate material, and thickness.


In the model numbers of A1 and A2 type standard test pieces, the left side of the shaded line indicates the depth of the artificial flaw, and the right side of the shaded line indicates the thickness of the plate. (Unit: µm)
Example) A1 7/50 : A1 (specimen) (flaw depth) 7 µm / (specimen thickness) 50 µm






Low-halogen and sulfur type

NDT markingpen.jpg
NDT Marking Pen Low halogen sulfur type

Minimized impurities such as chlorine, fluorine, and sulfur marking pen .Used for marking on the surfaces of stainless steels and nickel-titanium alloys. Available 4 colors : black, red, white and blue .

Color/ Writing width 3.0mm 1.0mm
Black
Red
White
Blue

MARKING PEN REGULATION

You can see it by scrolling horizontally.

Chlorine・Fluorine content Less than 200ppm
Sulfur content Less than 50ppm

Marking Ink

Marking Ink (black) MB-5

Marking Ink (black) MB-5 was mainly developed for the copper pipes to be tested by eddy current testing. And this Ink is the fast drying type not to break out any detach even after annealing.
