To perform magnetic particle inspections conveniently, HANDY MAGNA is an excellent means. Simply contacting magnetic poles directly with inspection objects and applying magnetic particles with the switch held down detects any defects easily. Various types are provided to satisfy inspection requirements.

Electromagnetic yoke "HANDY MAGNA"

Portable  Electromagnet Yoke

Magnetic Electromagnetic Yoke Handy Magna A-1

A-1

Magnetic Electromagnetic Yoke Handy Magna A-2

A-2

Magnetic Electromagnetic Yoke Handy Magna A-4

A-4

Magnetic Electromagnetic Yoke Handy Magna A-6

A-6

Magnetic Electromagnetic Yoke Handy Magna TE-2

TE-2

Magnetic Electromagnetic Yoke Handy Magna TE-3

TE-3

Magnetic Electromagnetic Yoke Handy Magna HM-52L

HM-52L

Magnetic Electromagnetic Yoke Handy Magna HM-76

HM-76

Models

You can see it by scrolling horizontally.

A-1 Standard type. Mainly used for welding. With an universal yoke.

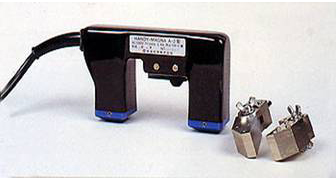

A-2 Small and compact type of A-1 type. Useful for long time inspections. Universal yoke is an option.
A-4 Variable yoke type. Used for multi-purposes and applications.

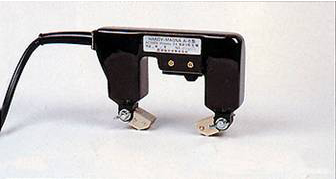

A-6 Small and compact type of A-4 type.
TE-2 Spot type. Ideal for local inspections and for carrying.
TE-3 Model TE-3 is the best for a turbine blade inspection.
HM-52L Compact and lightweight for fillet weld
HM-76 Compact and lightweight

Configuration

・Body (with a micro switch)
・5m power cable (3-core, two-type rubber cap tire cable)
・Steel carrying case

Features

1.The AC continuous method achieves higher ability to detect any surface defects by the skin effect.
2.The yoke type, which suppresses a current flowing directly into the tested objects, avoids any possibility of sparking.
3.Small, compact, and 100V power supply (AC) suitable for portable use.
4.Yokes allow the user to use HANDY MAGNA for any shape tested objects.
5.Water-proof switches minimize risks of rare short or shocks to human bodies when wet particles are used.
6.For A-1, A-2, and A-6, their bodies have been connected directly to cable connection so that their strength and water-proofing property are improved.

SPECIFICATIONS

You can see it by scrolling horizontally.

TYPE A-1 A-2 A-4 A-6 TE-2 HM-52L HM-76
Current AC100V 50/60Hz(200V and other Voltage can be option.) AC100V 50Hz
Rated current(A) 50Hz 4 2.5 4 3.5 1.2 1.4 1.2
60Hz 3 2.3 3 2.3 0.7 - -
Magnetic flux(mWb) 50Hz 0.80 0.60 0.70 0.57 0.30 0.32 0.35
60Hz 0.70 0.55 0.57 0.48 0.27 - -
Magnetic electrode distance
(mm)
140 110 140 110 70 52 76
Size(WxDxH)mm 235x50x135 193x46x115 235x50x183 193x50x151 115x52x70 180x43x96 134x43x97
Magnetic electrode Cross-Section Dimensions(mm) 25×25 20×20 25×25 20×20 15×15 15×15 15×15
Weight without cable(kg) 3.2 2.0 3.6 2.0 1.2 1.0 1.0

Duty cycle

A-1,A-2, and A-6・・・・・・・・・・・・・・・・・70%(5sec ON, 2sec OFF)
TE-2,HM-52L,HM-76・・・・・・・・・・・・・・50%(5sec ON, 2sec OFF)

Lifting power

(excluding TE-2)・・・・・・・・above 10 pounds

Voltage and frequency are fixed per your requirements.

4-pole electromagnet

Magnetic Electromagnetic Yoke Handy Magna HM-5AX

Developed specially for inspections on the bottoms of tanks and the welds of pressure vessels. The rotating magnetic field enables the defects in all directions to be detected. Since this type can check for any defect while running, testing performance is improved.

SPECIFICATIONS

TYPE HM-4AX HM-5AX
Magnetizing power(AT) 2400×2 3500×2
Effective inspection wide 80mm 100mm
Body weight 4kg 8kg
Duty cycle 5 sec. ON
5 sec. OFF
5 sec. ON
5 sec. OFF
